| SPESIFIKASI TEKNIS |
| Model | SW06-D1 |
| Persyaratan Hidraulik | Tekanan Terukur: 17,5 MPa ( 2.500 psi )
Tekanan Maks: 21 MPa ( 3,000 psi )
Nilai Aliran: 140 LPM ( 37 GPM )
Aliran Min: 120 LPM ( 32 GPM ) |
| Rentang Pipa | 3-1/2 ″ DP ~ 8 ″ DC |
| Maks.Berputar cepat | 80 RPM @ 5 ″ DP |
| Maks.Putar Torsi | 5.000 N·m ( 3.750 kaki-lb ) |
| Maks.Torsi Rias | 80.000 N·m ( 60.000 kaki-lb ) |
| Maks.Torsi Penembusan | 110.000 N·m ( 80.000 kaki-lb ) |
| Tinggi Sendi | 655mm ~ 1,655mm ( 25,8″ ~ 65,0″ ) |
| Perjalanan Horisontal | 1.450mm ~ 2.590mm ( 57,0″ ~ 102,0″ ) |
| Kontrol | Remote Control dan Kontrol Nirkabel (Standar) |

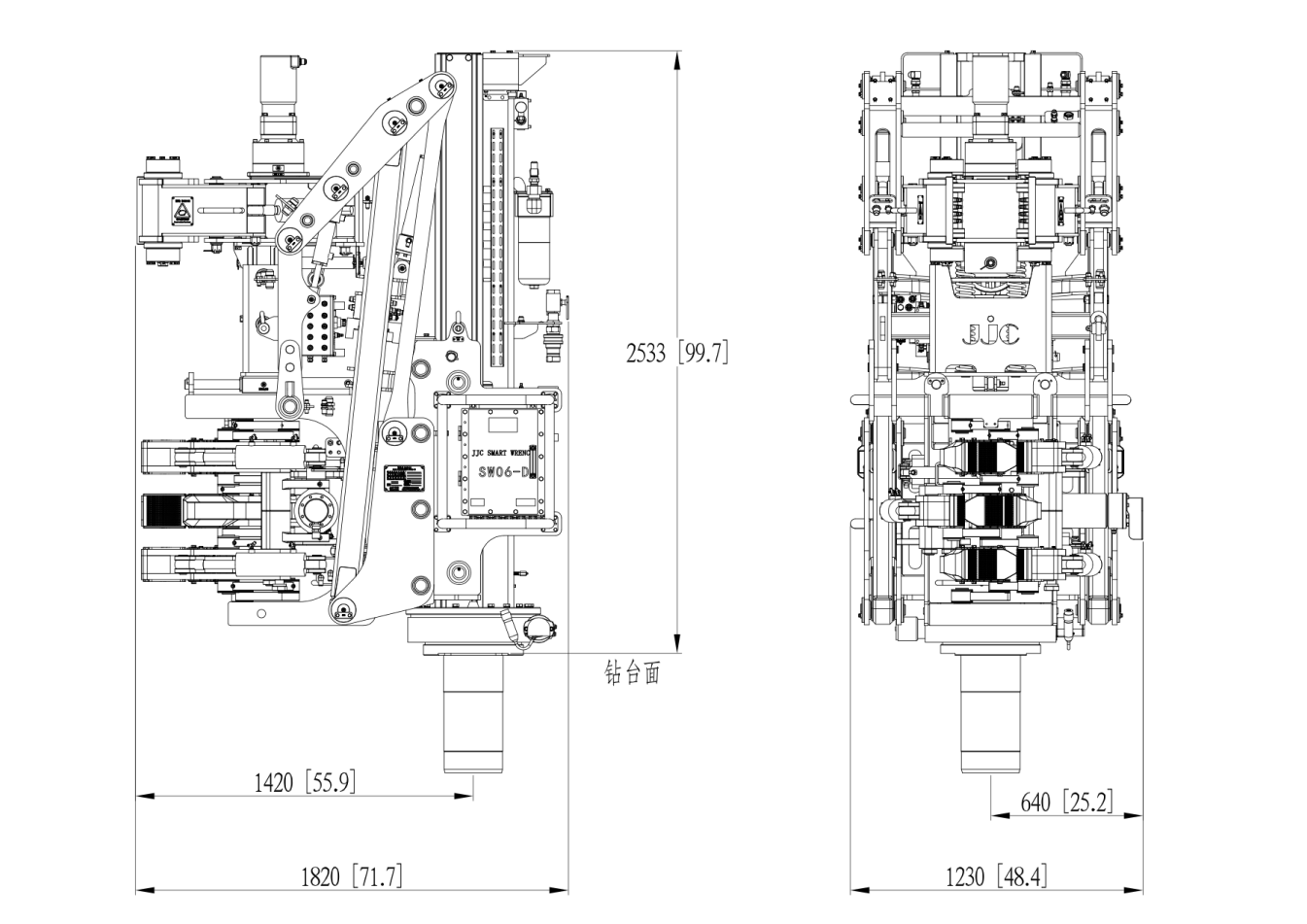

| Dimensi（L×T×L） | 1.230 mm × 2.533 mm × 1.820 mm ( 48,4″ ×99,7″ × 71,7 ″ ) |
| Berat | 3.470 kg (7.650 pon) |
